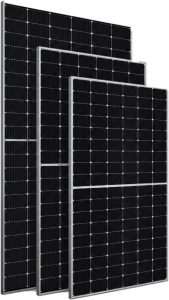

Solar Panel
AGER Solar Panels incorporate advanced PERC and N-Type technologies and are available in monofacial and bifacial models, with power outputs ranging from 335 W to 720 W. Designed to meet the needs of residential, commercial, and utility-scale solar projects, they deliver high conversion efficiencies of 21–23%, long-term durability, and reliable performance under diverse weather conditions. These features make AGER a dependable choice for solar energy investments.
چرا پنلهای خورشیدی AGER
Tailored Solutions for Every Project
The right products and solutions to meet the needs of residential, commercial, and industrial projects.
Power Output from 335 W to 720 W
Meeting the needs of a wide range of projects, from residential systems to large-scale solar power plants.
High Efficiency (21–23%)
Greater energy output and higher productivity in less space.
Monofacial & Bifacial Models
Flexible options to maximize energy yield across different installation conditions.
Advanced PERC & N-Type Technology
Leveraging the latest solar technologies for stable and optimized performance.
Versatile Applications
Ideal for residential, commercial, industrial, and utility-scale solar projects.
High Resistance to Harsh Environmental Conditions
Reliable performance under strong winds, hail, and adverse weather conditions.

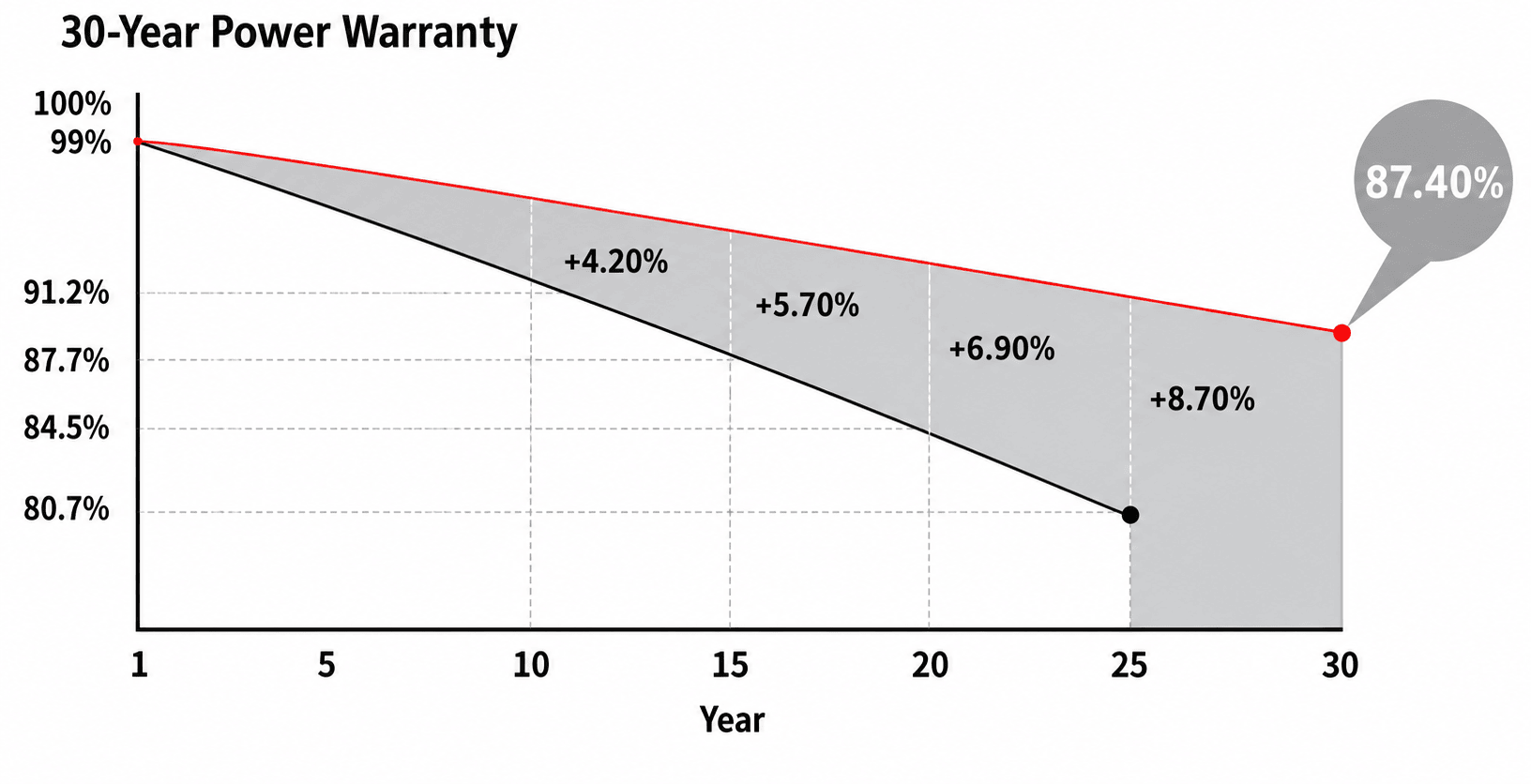

30-Year Performance Warranty
Guaranteed long-term energy output and sustained efficiency.
AGER Solar Panel Spesification
Mechanical Parameters
|
Parameter |
Value |
|---|---|
|
Cell Orientation |
144 (6×24) |
|
Junction Box |
IP68, three diodes |
|
Output Cable |
4mm², +400, -200mm / ±1400mm length can be customized |
|
Glass |
Dual glass, 2.0+2.0mm semi-tempered glass |
|
Frame |
Anodized aluminum alloy frame |
|
Weight |
33.5kg |
|

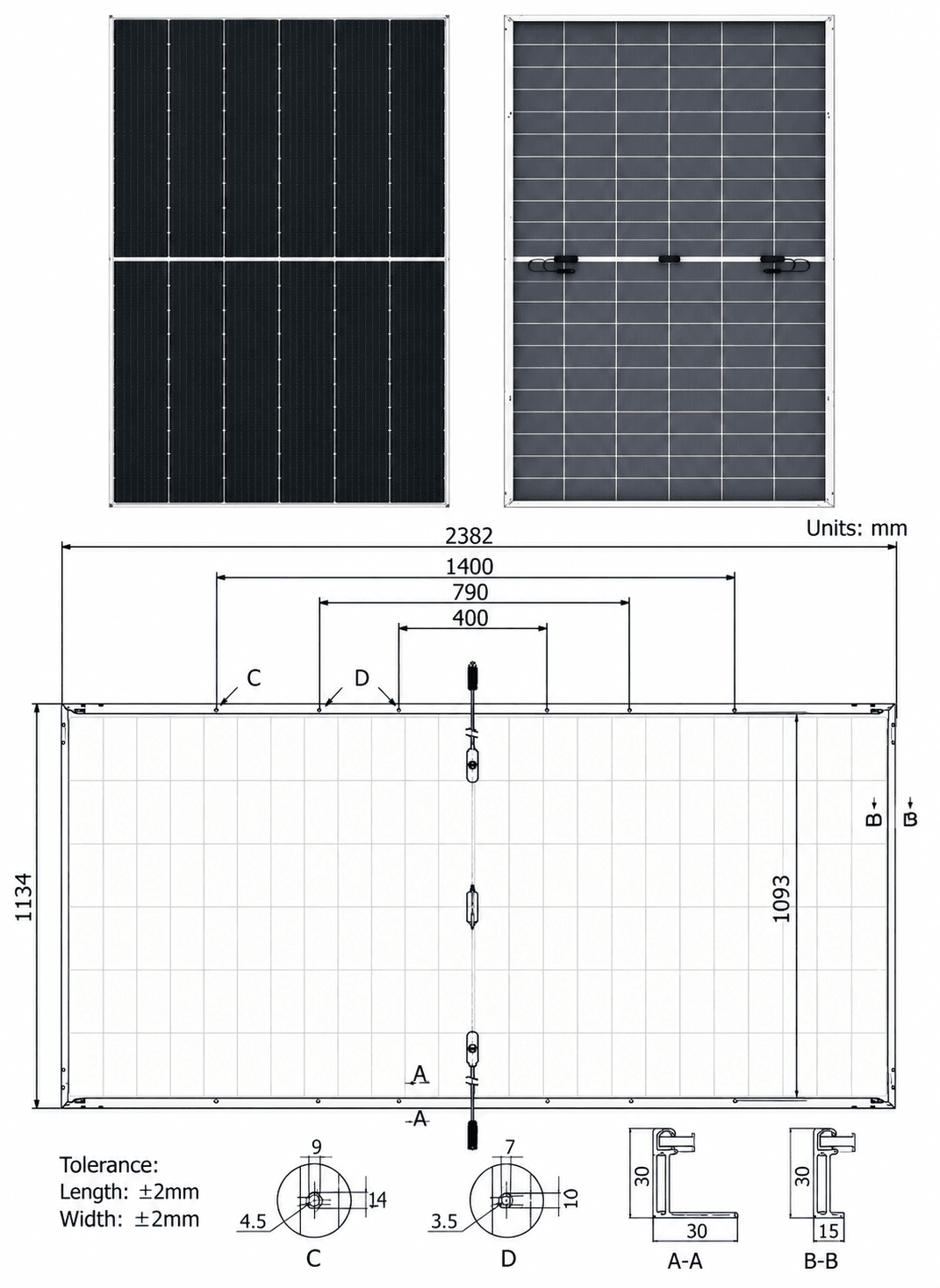

Dimension |
2382×1134×30mm |
|
Packaging |
36pcs per pallet / 180pcs per 20’ GP / 720pcs per 40’ HC |
Mechanical Loading
|
Parameter |
Value |
|
Front Side Maximum Static Loading |
5400Pa |
|
Rear Side Maximum Static Loading |
2400Pa |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
Temperature Ratings (STC)
|
Parameter |
Value |
|
Temperature Coefficient of Isc |
+0.045%/°C |
|
Temperature Coefficient of Voc |
-0.230%/°C |
|
Temperature Coefficient of Pmax |
-0.280%/°C |
Electrical Characteristics
STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s
|
Module Type |
AG-335M |
AG-585M |
AG-590M |
AG-595M |
AG-600M |
AG-605M |
AG-610M |
AG-615M |
AG-620M |
AG-720M |
|
Maximum Power (Pmax/W) STC |
335 |
585 |
590 |
595 |
600 |
605 |
610 |
615 |
620 |
720 |
|
Maximum Power (Pmax/W) NOCT |
255.0 |
445.3 |
449.1 |
452.9 |
456.7 |
460.6 |
464.4 |
468.2 |
472.0 |
548.4 |
|
Open Circuit Voltage (Voc/V) STC |
38.20 |
51.89 |
52.00 |
52.11 |
52.22 |
52.33 |
52.44 |
52.55 |
52.66 |
52.88 |
|
Open Circuit Voltage (Voc/V) NOCT |
36.30 |
49.32 |
49.42 |
49.53 |
49.63 |
49.73 |
49.84 |
49.94 |
50.05 |
50.26 |
|
Short Circuit Current (Isc/A) STC |
10.85 |
14.25 |
14.33 |
14.41 |
14.49 |
14.57 |
14.65 |
14.81 |
14.90 |
17.30 |
|
Short Circuit Current (Isc/A) NOCT |
8.72 |
11.45 |
11.51 |
11.58 |
11.64 |
11.70 |
11.76 |
11.83 |
11.90 |
13.84 |
|
Voltage at Maximum Power (Vmp/V) STC |
32.10 |
43.79 |
43.90 |
44.01 |
44.12 |
44.23 |
44.34 |
44.44 |
44.55 |
44.90 |
|
Voltage at Maximum Power (Vmp/V) NOCT |
30.50 |
41.62 |
41.72 |
41.83 |
41.93 |
42.03 |
42.14 |
42.23 |
42.34 |
42.64 |
|
Current at Maximum Power (Imp/A) STC |
10.43 |
13.36 |
13.44 |
13.52 |
13.60 |
13.68 |
13.76 |
13.84 |
13.92 |
16.03 |
|
Current at Maximum Power (Imp/A) NOCT |
8.36 |
10.70 |
10.77 |
10.83 |
10.89 |
10.96 |
11.03 |
11.09 |
11.15 |
12.87 |
|
Module Efficiency (%) |
18.5 |
21.7 |
21.8 |
22.0 |
22.2 |
22.4 |
22.6 |
22.8 |
23.0 |
23.2 |
Electrical characteristics with different rear side power gain (reference to 605W front)
|
Pmax/W |
Voc/V |
Isc/A |
Vmp/V |
Imp/A |
Pmax gain |
|
635 |
52.33 |
15.30 |
44.23 |
14.36 |
5% |
|
666 |
52.33 |
16.03 |
44.23 |
15.05 |
10% |
|
696 |
52.43 |
16.76 |
44.33 |
15.73 |
15% |
|
726 |
52.43 |
17.49 |
44.33 |
16.41 |
20% |
|
756 |
52.43 |
18.22 |
44.33 |
17.10 |
25% |
Operating Parameters
|
Parameter |
Value |
|
Operational Temperature |
40°C ~ +85°C- |
|
Power Output Tolerance |
3%~ 0 |
|
Voc and Isc Tolerance |
±3% |
|
Maximum System Voltage |
DC1500V (IEC/UL) |
|
Maximum Series Fuse Rating |
30A |
|
Nominal Operating Cell Temperature |
45±2°C |
|
Protection Class |
Class II |
|
Bifaciality |
80±5% |
|
Fire Rating |
UL type 29 / IEC Class C |
