Powerwall
The AGER Residential Energy Storage System is an advanced solution for solar energy storage and backup power supply, with a 5 kW power capacity. Featuring Lithium Iron Phosphate (LiFePO₄) battery technology, the system offers enhanced safety, modular expandability, and intelligent energy management.
Why Choose AGER Residential Energy Storage Systems?
Exceptional Safety
Advanced Lithium Iron Phosphate (LiFePO4) battery technology and automatic safety systems.
Modular Design
Expandable storage capacity from 5 kWh to tens of kWh by connecting multiple battery modules, adapting to your energy needs.
Reliable Performance in Harsh Conditions
High protection ratings (such as IP66) provide resistance to water and dust ingress.
Intelligent Energy Management
Equipped with energy optimization systems for precise charge and discharge management and seamless integration with smart solar inverters.

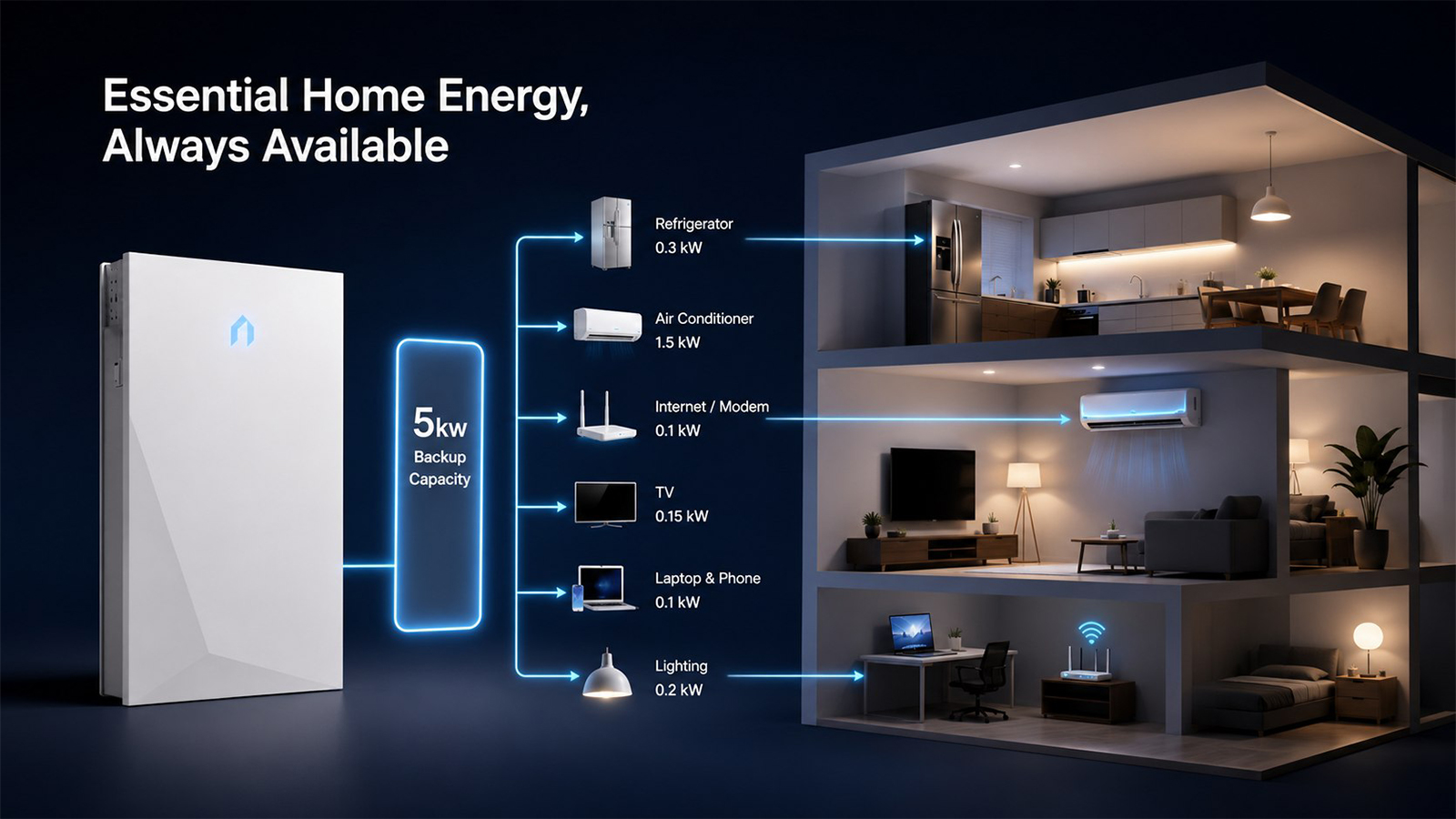

Emergency Backup Power
With accessories such as a Backup Box, essential household loads remain powered during grid outages.
General Specification
|
Key Specification |
Value |
|
AC Output Power |
5 kW |
|
Battery Capacity |
5 kWh (Expandable to 30 kWh) |
|
Maximum PV Input |
7.5 kWp (10 kWp with Optimizers) |
|
Maximum Efficiency |
98.4% |
|
Grid Connection |
Single-Phase |
|
Protection Rating |
IP65 |
|
Operating Temperature |
-25°C to +60°C |
|
Monitoring |
FusionSolar App |
|
Backup Power |
Supported (Optional Backup Box) |
System Components
|
Included |
Optional |
||
|
AGER-5K Transformer less Hybrid Inverter |
Backup Box-5000 |
||
|
AGER Smart ESS 5 kWh Battery |
450W-P Optimizers |
||
|
Mounting Bracket |
Smart Dongle 4G |
||
|
FusionSolar Monitoring |
Extended Battery Modules |
Solar & Battery Performance
|
Solar Input |
Battery Storage |
|
Up to 7.5 kWp PV |
5 kWh Standard |
|
Dual MPPT Tracking |
Expandable to 30 kWh |
|
600 V Max DC Voltage |
5 kW Charge Power |
|
90–560 V MPPT Range |
5 kW Discharge Power |
Designed For
Residential Solar Systems • Energy Storage • Backup Power • Self-Consumption Optimization • Smart Energy Management
AGER ESS
Reliable. Intelligent. Expandable.
Smart Protection & Reliability
- Anti-Islanding Protection
- DC Reverse Polarity Protection
- AC/DC Surge Protection (Type II)
- Residual Current Monitoring
- AI Arc Fault Detection
- AC Overvoltage Protection
- Battery Reverse-Charge Protection
- Insulation Monitoring
